UAV Pro 3 pin straight connector Self Latching connector set with 30cm cable

Manufacturer: AVIZAR
SKU: Bcon3
Manufacturer AVIZAR
Our Price

89.00


73.55 Ex VAT

Seen it cheaper?

Availability
In Stock
Ships same day if placed before 12H
SKU Bcon3
Quantity

Purchase this product now and earn 89 Points!



Description

B series is an Industrial-Military grade connector, used in real UAV systems. This connector is 3 pin

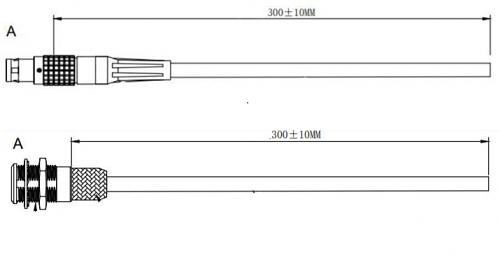

This connector set( Plug and Socket)comes with factory soldered shielded cable, 30cm long on each side of Plug and Socket side.

Highlights:

  • Straight plug feature a unique push-pull self-latching mechanism for safe and secure mating
  • Complete protection against vibration, shock or any pull on the cable.
  • Keying system («G» key standard)of similar connectors for connector alignment.
  • 360° screening for full EMC/EMI shielding.
  • High accuracy and interference-free data and signals

To initiate the self-latching system the plug is simply pushed axially into its mating half.
Once firmly latched in place via the internal latches the connection is virtually impossible to break.
No amount of pulling on the cable or any other part of the connector body will release the two parts.

Specifications:

  • Max. Matings: 5000
  • Contact Dia.: 0.7 mm (0.028")
  • Bucket Dia.: 0.6 mm (0.025")
  • Max. Solid Conductor: 0.15 mm^2 (AWG 24)
  • Max. Stranded Conductor: 0.15 mm^2 (AWG 24)
  • R (max): 7.5 mOhm
  • Vtest (contact-shell): 1200 V
  • Vtest (contact-contact): 850V
  • Rated Current: 5.5A (AC/DC)
  • Temp range -40 -- 200Deg C
  • Humidity <=95% [at 60 deg C / 140 F]
  • Vibration 15 g [10 Hz - 2000 Hz]
  • Shock resistance 100 g [ 6 ms]
  • Salt spray corrosion >144 hr
  • IP rating 50
  • Shielding 75 dB (10 MHz)

Package includes:

  • 1 x Plug 3 pin with factory attached cable 30cm
  • 1 x Socket 3 pin with factory attached cable 30cm
