QS8 ANTISPARK Connector SET 8mm for High current applications, 200 AMPS, Male+Female

Manufacturer: Amass
SKU: Q8CON
Manufacturer Amass
Our Price

15.00


12.40 Ex VAT

Seen it cheaper?

Availability
In Stock
Ships same day if placed before 12H
SKU Q8CON
Quantity

Purchase this product now and earn 15 Points!



Description

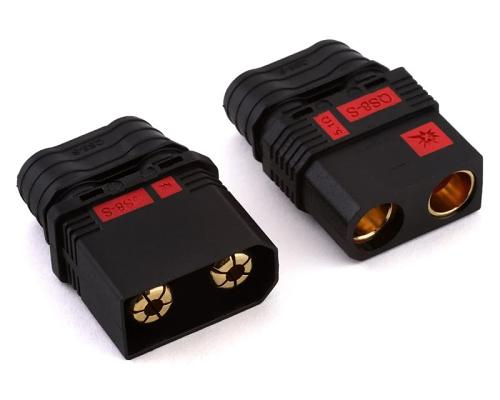

QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, the design provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology.

The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage.

NOTE: T-style connector shown in photos is for size reference only, and is not included.

Features:

  • Anti-Spark Technology Increases Lifespan of Connector
  • 110A Constant/300A Peak Current Rating

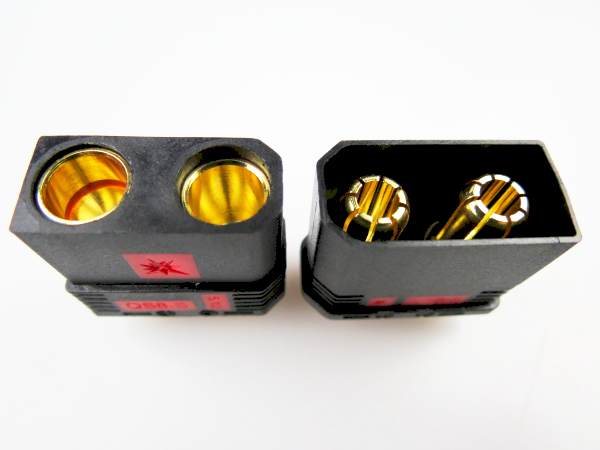

  • 8.0mm Gold Plated Brass Bullet
  • Great for all High Voltage Applications
  • Nylon/Fiber Composite Housing
  • Package Includes One Female Connector, One Male Connector & End Cap

Specifications:

  • Connector Diameter: 8.00mm
  • Metal Material: Gold Plated Brass
  • Plastic Material: Fiber Nylon Comp
  • Flame retardant rating: UL94 V0
  • Temperature Range: 200C Max
  • Rated Voltage: 600V DC
  • Continuous Current: 110A
  • Peak Current: 300A+
  • Weight: 41g (Male+Female Set)
  • Total Length: Approx 70mm (Male & Female w/End Cap)
  • Width: 29.5mm
  • Max Wire Gauge: 6awg

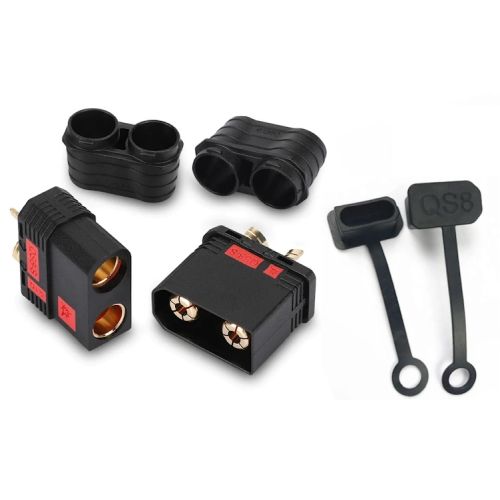

Includes:

  • (1) QS8 Female Anti-Spark Connector
  • (1) QS8 Male Antispark connector
  • (2) Connector Covers

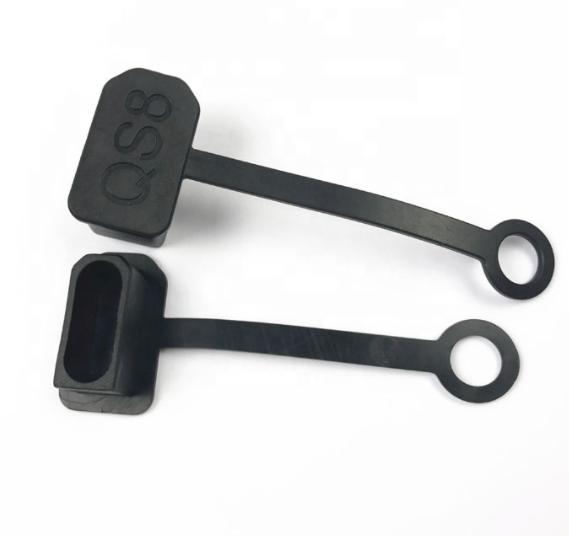

  • (2) Wire Caps ( rubber protection)

To solder those connectors we recommending to use Big soldering systems, e.g 150-200W
