Kontronik COOL KOSMIK 160 HV

Manufacturer: Kontronik

Description

Kontronik COOL KOSMIK 160 HV ! Please note Kontronik produce on Order! we always want to have fresh esc, with latest FW. if you need it urgent contact before ordering to verify delivery time!

It has an excellent passive heat sink integrated, which is completely sufficient for air-flow applications.
In addition, the matching fan is supplied, which ensures sufficient air movement in all installation situations.
Just the perfect solution for all perfectionists.

5-14 Lipo, 20-59 v
160 A continuous load
BEC 7 A continuous current
BEC 20A peak current
250 g without cable

The specially developed housing not only protects, but is an essential part of the controller concept. Despite extremely good efficiency, residual heat in the incandescent lamp area is created with these performance dimensions. Therefore, the upper aluminum plate is directly connected to the final stage.
With the KOSMIK KONTRONIK defines a new high-end level. Even at first glance, it becomes apparent that the KOSMIK is something completely new. The KOSMIK is resistant to continuous current up to 200 A and up to 14 S - that is 10 kW continuous power, even 12 kW at peak times. The specially developed housing not only protects, but is an essential part of the controller concept. Despite extremely good efficiency, residual heat in the incandescent lamp area is created with these performance dimensions. Therefore, the upper aluminum plate is directly connected to the final stage. By putting a variety of heatsinks in your hand, you have it in your hands how much power your KOSMIK can process in the long run. The lower aluminum plate allows a stable attachment in the model. Of course, the KOSMIK has an anti-flash function.
A BEC we are proud of
The most powerful BEC that KONTRONIK has ever developed is a sensational one.
With a continuous current rating of 10 A (KOSMIK 160 + HV: 7A) and up to 30 A (KOSMIK 200 + HV: 20A) for a short time with an output voltage of 5 - 8 V, the KOSMIK is also ideally suited for high-performance servos.
Without interference problems and voltage fluctuations, this powerful BEC is fully operational up to 14 S. This is unique.
To use the full BEC power, the use of a second BEC cable is necessary.
Therefore, the KOSMIK has 2 BEC connections.

Screwed instead of soldered

No cables.
This is perhaps the first thing that stands out on the new KOSMIK.
To ensure that its enormous power can be optimally transferred, gold-plated copper links are provided on the KOSMIK.
On it appropriate cables are screwed by cable lugs.
The cable cross section can be adapted to the current requirement.
This gland makes the exchange of cables uncomplicated and represents a reliable high-current connection.
In addition to the supplied cable set, pre-assembled cables are available as accessories.

Nothing is lost

KOSMIK is the first KONTRONIK controller to record operating parameters internally.
Speed, current, voltage, etc. are always available in the controller and can be recorded during the flight.
The data is stored on a microSD card.
The KOSMIK also offers the option to connect 3 external sensors (for example for altitude measurement).
These data are also recorded during the flight.
The KOSMIK can be connected directly to the PC via a fast MicroUSB connection.

Many times programmable

Proven mode programming is also implemented in KOSMIK.
Thus, the controller is ready for use quickly and can be adapted to different applications within a very short time.
The Kosmik can be parametrized via the PROGDISC.
This programmer makes it possible to change individual parameters and helps to adapt the KOSMIK to personal preferences. Of course, the KOSMIK is also online updateable.
This software updates can be conveniently installed at home.
Downtime is a thing of the past.

Communication at a glance

Two bi-color LEDs give the KOSMIK a wide range of signal outputs.
These are used both for diagnosis and for programming support.

Specifications:

5-14 S LiPo
20-59 V
160 A continuous current
up to 320 A peak current
BEC 7 A continuous current
BEC 20 A peak current
250 g without cable
387 g with cable

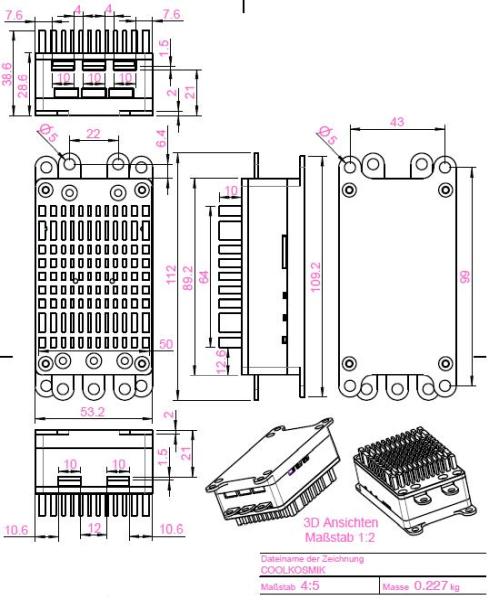

Size 109,2x53,2x38,6 mm
